Elevator
Tehnološke karakteristike
| Kapacitet | 100 t/h |
| Snaga motora | 230 KW |
| Duzina transportera | H= 35670 mm |
Karakteristike pogonske jedinice
| Motor | Tip: | ZK 200 L4 |
| Reduktor | Tip: | KHT 65 |
| Snaga: | 230 kW | |
| Tehnički podaci: | i=56 | |
| Hidro dinamička spojnica | Tip: | EG 425 |
| Elastična spojnica | Tip: | ES 1000 |
Detaljna Sastavnica
| ident broj | NAZIV | BR_CRT | DIMENZIJE |
|---|---|---|---|
| 319800 | ELEVATOR,,U'' | 350841 | H=35670mm |
| 321039 | OSOVINICA KOFICE ELEVATORA | T-D-200-3 | |
| 147526 | OSOVINICA | T-D-200-3/2 | Φ 200X165;Č.0370 |
| 147727 | PLOCICA | T-D-200-3/1 | =5XF38;Č.0300 |
| 321038 | OSOVINICA KOFICE ELEVATORA | T-D-200-2 | |
| 147525 | OSOVINICA | T-D-200-2/2 | F30X165;Č.0370 |
| 147726 | PLOCICA | T-D-200-2/1 | =5 X Φ 55;Č.0300 |
| 319825 | SPOJNICA ZA LANAC | 105 DIN745 | |
| 319824 | LANAC KALIBRIRANI | A30;DIN 764DU@INA685 KARIKA | |
| 147529 | PLOCICA ZA SPOJNICU | Č.0545 | |
| 319823 | NOSAC TEGA | 350850 | |
| 319822 | KORPA ZA TEG | 350849 | |
| 319821 | KONTROLNA VRATA | 350984 | |
| 319820 | POKLOPAC | ||
| 319819 | KOFICA | 350846 | |
| 319818 | POKLOPAC | T-D-278 | |
| 319817 | POKLOPAC | 350847 | |
| 319816 | POGONSKO POSTOLJE | 350845 | |
| 319815 | PRIJEMNI ELEMENT | T-D-281 | |
| 319814 | IZLAZNI ŽLEB | T-D-280 | |
| 319813 | LIM ZA USMERAVANJE | T-D-286 | |
| 319812 | SEGMENT SA OTVOROM | T-D-283 | |
| 319811 | SEGMENT BEZ OTVORA | T-D-284 | |
| 319810 | GORNJI SEGMENT | T-D-282 | |
| 319809 | DONJI SEGMENT | T-D-285 | |
| 319808 | DONJI SEGMENT | 1366.00.00 | |
| 319807 | GORNJI SEGMENT | T-D-279 | |
| 319806 | ZATEZNI LANCANIK | 350852 | |
| 147592 | VRATILO(ZATEZ.LANC.ELEV.) | T-D-235-1 | F90X1330;Č.1730 |
| v319805 | POGONSKA ZVEZDA | 350848 | |
| 147528 | GUMA | =5*50*135000;GUMA 40Sch | |
| 147527 | PLOCA | =8*582*590;Č.0361 | |
| 147524 | PRSTEN | Φ 180/125*40 Č.0370 | |
| 319804 | ZASTITNIK H=353 | ||
| 319803 | POVRATNI USTAVLJAC | ||
| 319802 | SPOJNICA HIDRODINAMICKA | EG-425 | |
| 319666 | SPOJNICA EL.RED.-DOBOS | ES-1000,,14 OKTOBAR | |
| 321045 | PRIRUBNICKA VEZA ES-1000 | T-D-203/R | |
| 148711 | CAURA ZA CENTRIRANJE | T-D-173-2 | Φ 140 x 110;Č.1330 |
| 147758 | CAURA | T-D-203/R-11 | Φ 140*110;Č.1330 |
| 147740 | GUMENI ULOŽAK(el.sp.ES-1000) | T-D-173-5 | Φ 81 x 111;GUMA |
| 147554 | ESP | 100X145 | |
| 148710 | PRIRUBNICA SPOJNICE ES-1000 | T-D-173-1 | Φ 496x210;$L.4732 |
| 147757 | PRIRUBNICA SPOJNICE | Φ 500X210;ČL.4732 | |
| 321042 | PRIRUBNICKA VEZA ES-1000 | T-D-199 | |
| 148661 | VRATILO | T-D-053/1 | Φ 177*888;C.4732 |
| 148613 | VRATILO | T-D-015-2 | Φ 170*3100;C.4732.4 |
| 147741 | KLIN (prir.sp.ES-1000;T-5) | T-D-199-8 | A18*32*190;Č.0645 |
| 147740 | GUMENI ULOŽAK(el.sp.ES-1000) | T-D-173-5 | Φ 81 x 111 GUMA |
| 007224 | PRSTEN STEZNI | 130 X 180 RFH 7012 | |
| 147742 | PRIRUBNICA SPOJNICE | Φ 500*210;ĆL.4732;14 OKTOBAR | |
| 147739 | PRIRUBNICA SPOJNICE ES-1000 | T-D-199-1 | Φ 500 x 210;ČL.4732 |
| 147523 | ELEKTROMOTOR | ZK 200 L-4;n=1470/min | |
| 319801 | REDUKTOR | KHT65;i=56;OA |

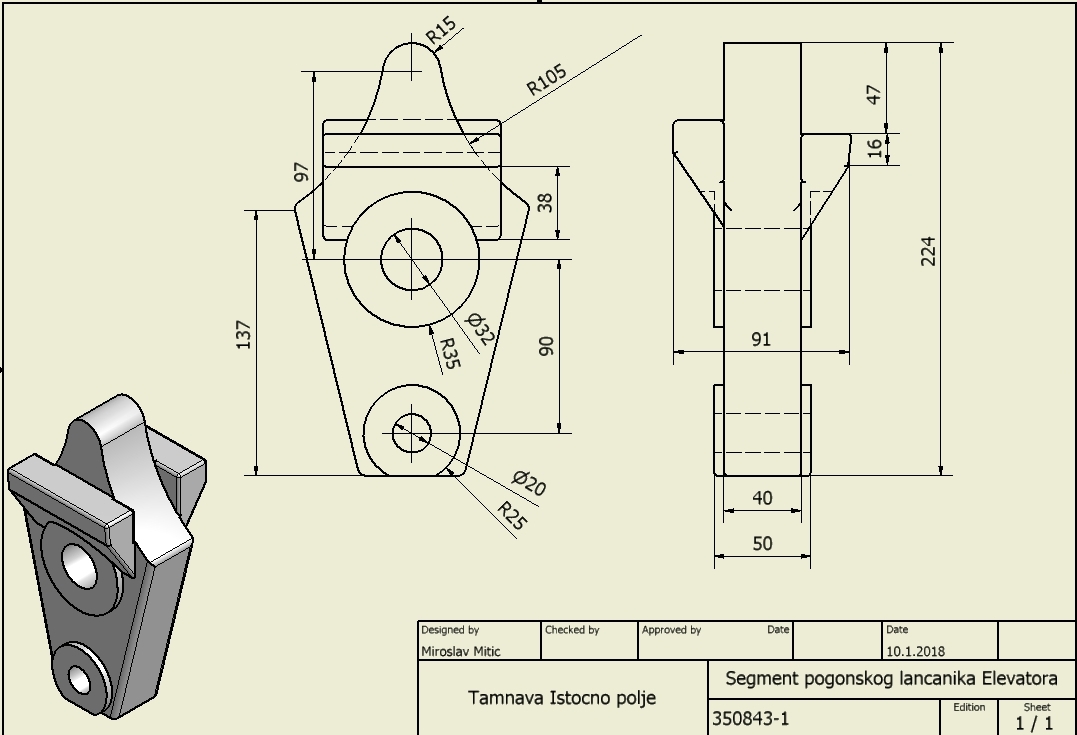

Segment pogonskog lancanika

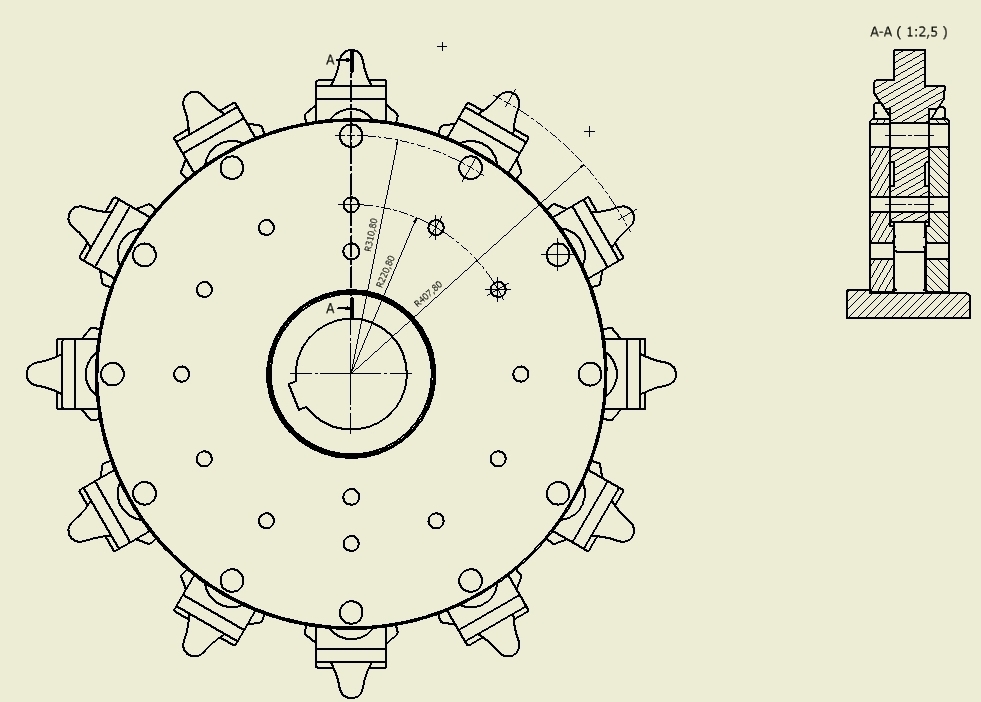

sklop glavcine i plocice segmenata

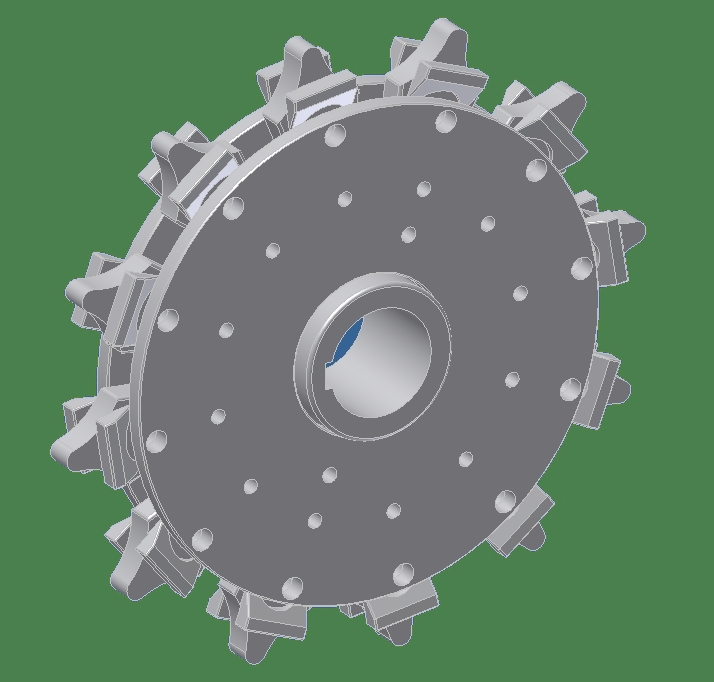

Pogonski lancanik
sklop
